Document Title: Trumpf CN700 and CN900 Nibbler Operator's & Parts Manual
Number Of Pages: 52
Condition Of Original: Good
Scan Type: Color Cover, Aumgented Gray Scale Scan of Black & White contents
Scan Quality: Good
Description: This book contains about 18 pages of general operational instructions including several tables concerned with tool setting and selection for specific applications. Following this are a couple pages with routine maintenance procedures. After that there are pages for each specific type with max and min capacity tables by operation, lubrication, and a table of punches and dies. The second half of the manual is comprised of a master parts list referenced by page to the appropriate line drawing of each sub assembly which appear in the pages following the list. The last several pages are electrical schematic for the control circuit. A nice comprehensive book for these machines!

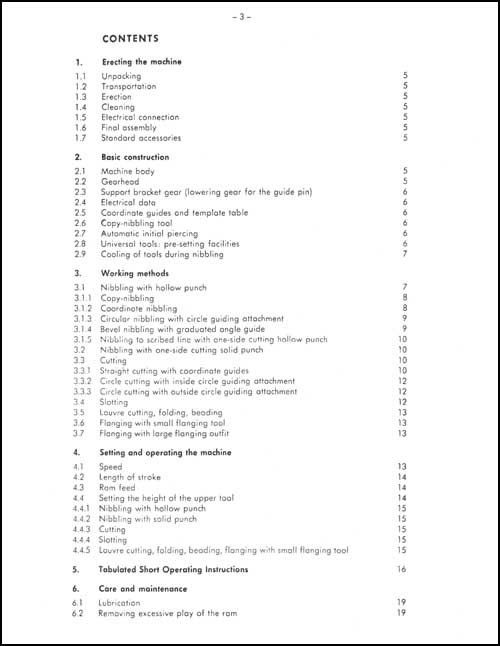

Sample Page:
