Document Title: American Pacemaker Instruction Book 14-22 Inch Lathes
Number Of Pages: 24
Condition Of Original: Fair to Good
Scan Type: Black & White scan of Black & White contents
Scan Quality: Good
Description: This manual begins with a five page master index of part numbers and descriptions. The following 14 pages contain line diagrams of labeled overall views of the machines, and sectional views of major component groups, options and variations based on type and era. All labels are numerical references to the master parts list. The remaining pages cover subjects including Checking Spindle Bearing Preload, Instructions For Dismantling Headstock and Replacing Bearings for both the Mark II, Mark I and Bench Headstocks, and Removal of Carriage Assembly. Good information for Boxford owners!

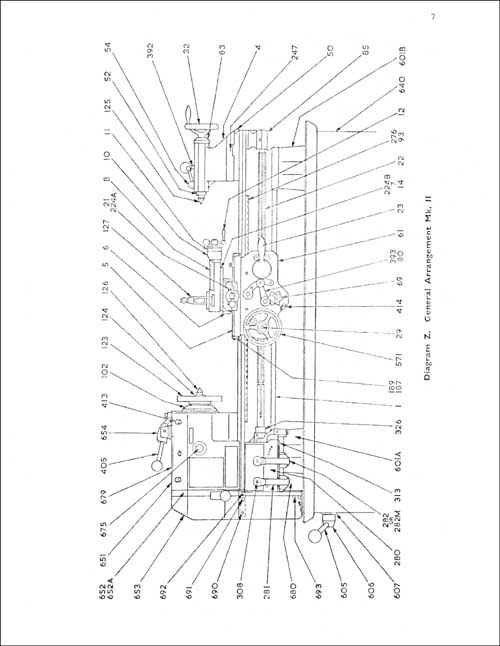

Sample Page:
Note: Download File Size is Approximately 6.4 Mb
|
