Document Title: Heald No. 22 Rotary Surface Grinding Machine Manual

Number Of Pages: 31
Condition Of Original: Good
Scan Type: Black & White and Scan of a Black & White Manual
Scan Quality: Good

Description: Instructions and Parts Catalog explaining the operation and adjustment of the Heald Style No. 22 Rotary Surface Grinding Machine. The first half of the manual identifies controls and covers the operational aspects for the machine including normal adjustments. The second half of the manual contains sectional labeled line drawings of major machine components and sub assemblies.

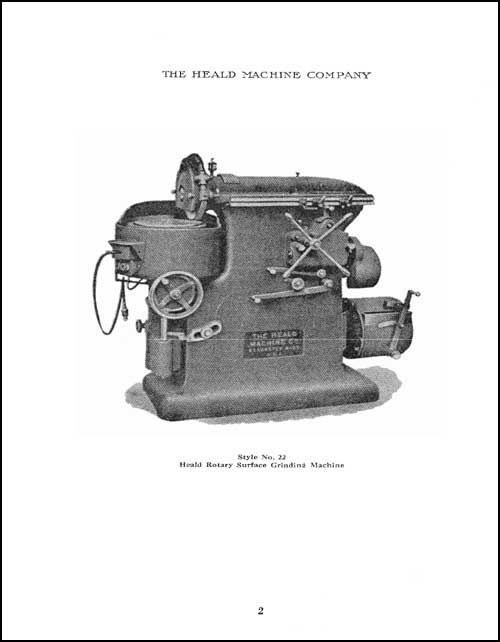

Sample Page:



Note: Download File Size is Approximately 1.8 Mb
